No.
|
1
|
2
|
3
|
4
|
5
|
6
|
|
Color
|
Blue
|
Orange
|
Green
|
Brown
|
Gray
|
White
|
|
No.
|
7
|
8
|
9
|
10
|
11
|
12
|
|
Color
|
Red
|
Black
|
Yellow
|
Violet
|
Pink
|
Aqua
|
|
Item
|
|
Unit
|
Specification（G.652D）
|
|
Mode field diameter
|
1310nm
|
μm
|
9.2 ± 0.4
|
|
1550nm
|
μm
|
10.4 ± 0.8
|
|
|
Cladding diameter
|
μm
|
125.0 ± 1
|
|
|
Cladding non-circularity
|
%
|
≤1.0
|
|
|
Core/cladding concentricity error
|
μm
|
≤0.5
|
|
|
Coating diameter
|
μm
|
242 ± 7
|
|
|
Coating/cladding concentricity error
|
μm
|
≤12
|
|
|
Cable cut-off wavelength
|
nm
|
≤1260
|
|
|
Attenuation Coefficient
|
1310nm
|
dB/km
|
≤0.36
|
|
1550nm
|
dB/km
|
≤0.22
|
|
|
Proof stress level
|
kpsi
|
≥100
|
|
|

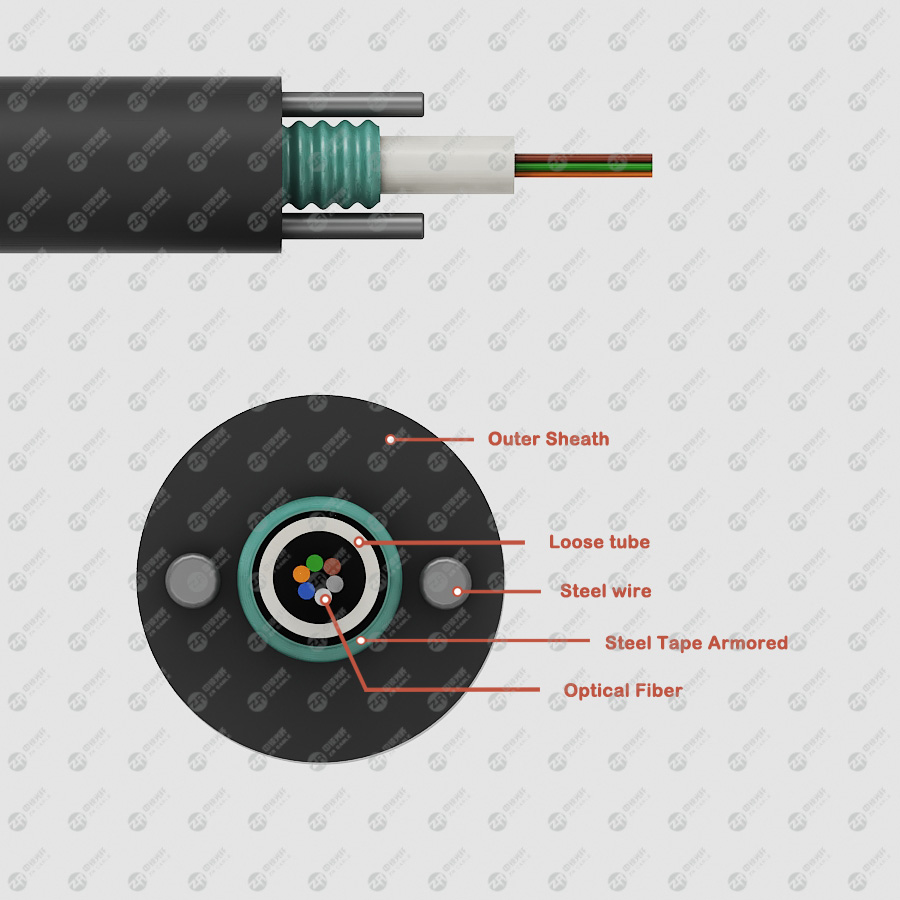

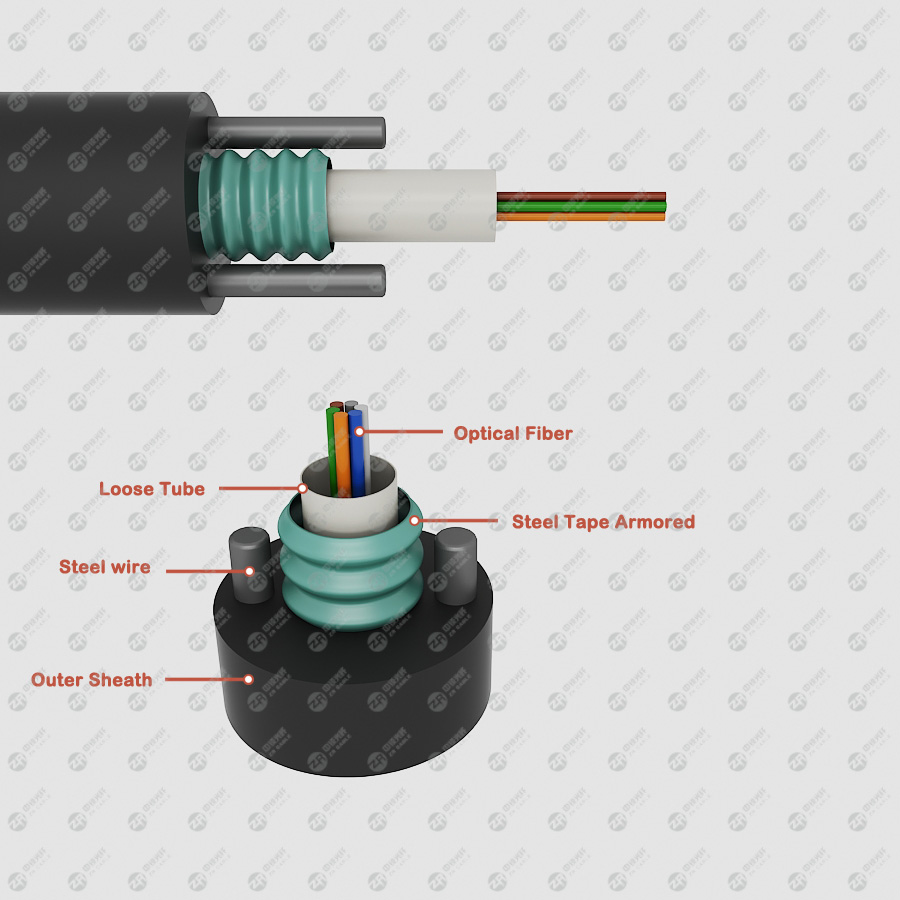

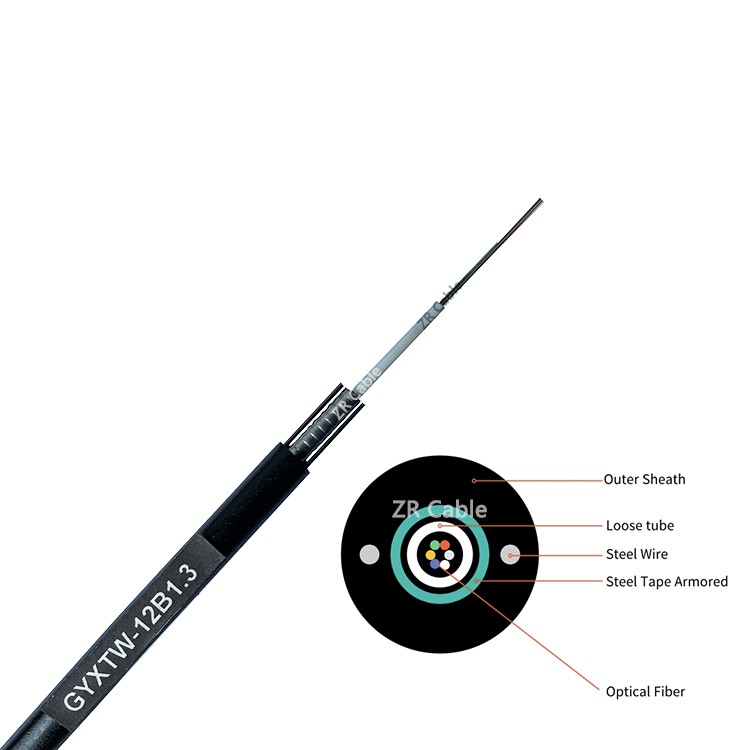

Items
|
Specifications
|
||||
|
Fiber Count
|
2-12
|
||||
|
Colored Coating Fiber
|
Dimension
|
250um+15um
|
|||
|
Loose Tube
|
Diameter( mm )
|
1.8-2.0
|
|||
|
Material
|
PBT
|
||||
|
Color
|
Natural
|
||||
|
Strength Member
|
Diameter( mm )
|
0.8
|
|||
|
Material
|
Phosphating Steel
|
||||
|
Outer Jacket
|
Cable Diameter( mm )
|
6.0
|
6.5
|
7.0
|
8.0
|
|
Thickness ( mm )
|
1.3
|
1.5
|
1.7
|
2.0
|
|
|
Cable weight
( ±3kg/km )
|
42
|
47
|
52
|
57
|
|
|
Material
|
PE
|
||||
|
Color
|
Black
|
||||
|
Tensile Strength
|
Long/short term( N )
|
600/1500
|
600/1500
|
600/1500
|
600/1500
|
|
Crush Resistance
|
Long/short term( N/100mm)
|
300/1000
|
300/1000
|
300/1000
|
300/1000
|
|
Bending Radius
|
Static/Dynamic(mm )
|
10D/20D
|
10D/20D
|
10D/20D
|
10D/20D
|
