Outdoor 1 2 4 6 8 12 core SM MM OM3 FTTH waterproof pigtail cable SC/APC SC FC LC UPC APC SCAPC waterproof fiber optic pigtail
#123113221
#123113221
Specifications
Description
Videos
Resources
Description
Product descriptions from the supplier
Products Description

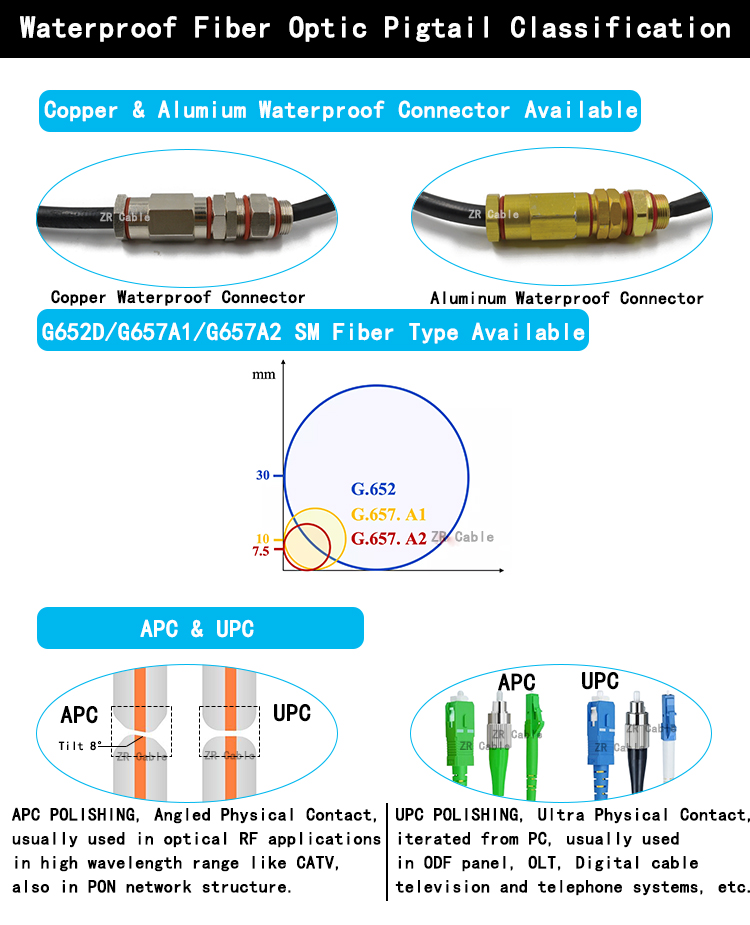

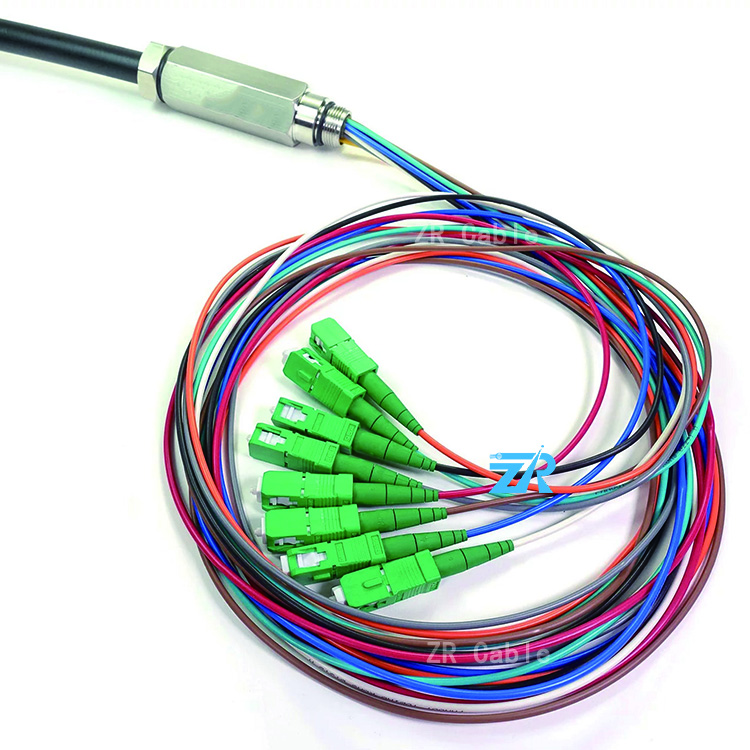

Waterproof Fiber Optic Pigtails
Waterproof pigtail, is assemblied by a waterproof GYJTA cable and one side connectors.
Features:
Waterproof fiber pigtail can be used in harsh environment. It is mainly used in outdoor connection of the optical transmitter.It’s designed with a strengthened waterproof unit and armored outdoor PE jacketed cables. Installing easily and reliable, strong tension, and excellent toughness
Application:
Fiber telecommunication system. Telecommunication network, CATV,LANs,WANs,External equipment connecting,Installing and debugging at harsh environment.FTTX...etc
| Item | SM | MM | ||
| Fiber Cable Type | G652D/G655/G657A1/G657A2 | OM1 | OM2/OM3/OM4 | |
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | |
| Cable OD (mm) | 0.9/2.0/3.0 | |||
| Endface Type | UPC | APC | UPC | APC |
| Typical Insertion Loss (dB) | <0.15 | <0.2 | <0.1 | <0.1 |
| Return Loss (dB) | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | |
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | |
| Anti-tensile Force (N) |
>70 | |||
| Temperature Range (℃) | -40~+80 | |||
| Cable Type | 1-4 | 6 | 8 | 12 |
| Cable Dimension (mm) | 11.6 | 11.6 | 13 | 15 |
| Cable Weight (kg/km) | 106 | 109 | 125 | 181 |
| TBF Diameter (um) | 900±50 | |||
| Tensile Strength(N) | Long Term | 200 | ||
| Short Term | 660 | |||
| Crush Resistance (N/100cm) | Long Term | 300 | ||
| Short Term | 1000 | |||
| Bending Radius(cm) | Dynamic | 20xD(D:Cable Diameter) | ||
| Static | 10xD(D:Cable Diameter) | |||
| Fiber Type (core/cladding dimension) |
9/125,50/125,62.5/125 | |||
| SMF | 50/125 | 62.5/125 | ||
| 1310/1550(cm) | 850/1300(nm) | 850/1300(nm) | ||
| Attenuation(dB/km) | ≤0.40/0.30 | ≤3.5/1.5 | ≤3.5/1.5 | |
| Minimum Bandwidth(Mhz.km) | / | ≥400/400 | ≥160/500 | |
Company Profile
Welcome to our company
Hunan ZR Communication Equipment Co., Ltd. is a fiber optic communication manufacturer integrating R&D.The main products are indoor distribution cable, outdoor cable, ADSS, OPGW, FTTH cable, fig8 cable, fiber patch cord and other fiber optical accessories.
Our company with 16 years of production experience and 45 optical cable production lines, we can design and produce all kinds of optical cable structures for customers. Having a team of 30+ technical engineers who can provide customers with one-stop solutions for optical links. And we have passed IS09001, ISO14001, OHSAS18001 certification with strict quality control for each delivery. Many internationally renowned optical communication companies have chosen ZR as their OEM supplier. looking forward to the cooperation with you in the future.
Why Choose Us
FAQ
Q1:How can i get your catalogue and price list?
A1:Please let us know your email or contactus from website directly for our catalogue and price list.
Q2:What if there is quality problem when we get the goods?
A2:If there is quanlity problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Further-more we will also take action to improve
the quality in future.
the quality in future.
Q3:What is your terms of payment?
A3:T/T 30% as deposit, and 70% before delivery.We"ll show you the photos of the products and packages before you pay the balance.
Q4:May I buy samples from you?
A4:Yes! You are welcome to place sample order to test our superior quality and services.
Q5:How about your delivery time?
A5:Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6:Can you provide us more other products to us to help us to save more shipping costs?
A6:Yes. There’re kinds of Indoor Cables, Outdoor Cables, Coaxial Cables, Telephone Cables, Fiber Optic Cables and Accessories will be the main products line of Factory. The OEM bulk order will be accept as well.
