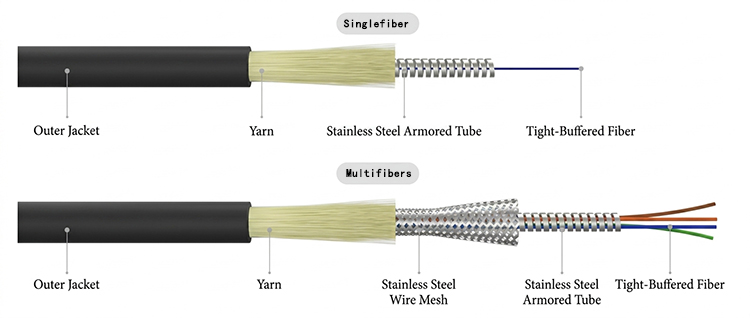

Armored patch cord is current popular patch cord.it can be laid in all kinds of environmental extremes. It is used without protection tube which saves space and is quite convenient for maintenance. The key advantage is that it has the construction including small stainless steel tube which protects optical fiber and provide better security for the whole system. And coating with PVC or LSZH jacket. To be a fire resistance,moisture resistance, and rodent
resistance cable
Ceramic ferrules.
Low insertion loss, high return loss.
Good in repeatability and exchangeability.
100% Insertion, Return Loss, End Face and Interference inspection.
Excellent mechanical endurance.
High credibility and stability.
Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard.
Contact Us
- Sales SupportContact Sales
- Call us at: +(86) 15211074652
- Send us a email at: info@zr-fibercable.com
Click to open expanded view

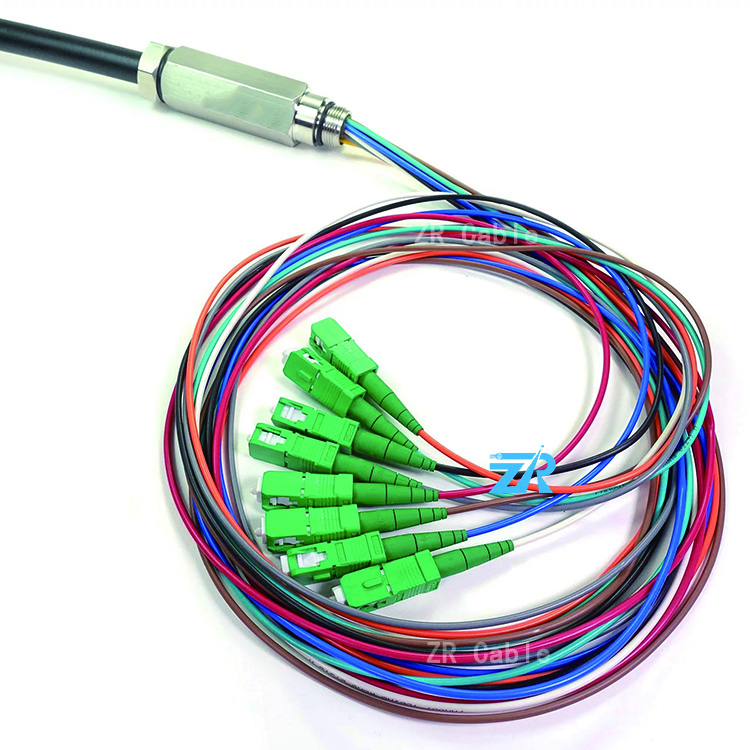

Outdoor SC/APC SC FC LC SC UPC SM MM Armoured Fiber Optic Patch Cable LC to SC SCAPC LCFC SC-SC LC-LC Armored Fiber Patch Cord
#123113220
#123113220
Specifications
Description
Videos
Resources
Fiber Type
Cores
Connector Type
SC-SC
Polish Type
UPC/UPC
Description
Product descriptions from the supplier
Products Description
Features:
Application:
1.CATV , and Multimedia
2.Telecommunication networks
3.Active device interface
4.Telecommunication networks
5.Gigabit Ethernet
6.Data processing networks
7.Interconnection for O/E modules
8.Premise installations
9.Optical switch interframe connection
10.Asynchronous Transmission Mode (ATM)
2.Telecommunication networks
3.Active device interface
4.Telecommunication networks
5.Gigabit Ethernet
6.Data processing networks
7.Interconnection for O/E modules
8.Premise installations
9.Optical switch interframe connection
10.Asynchronous Transmission Mode (ATM)
| Type | Standard,Master |

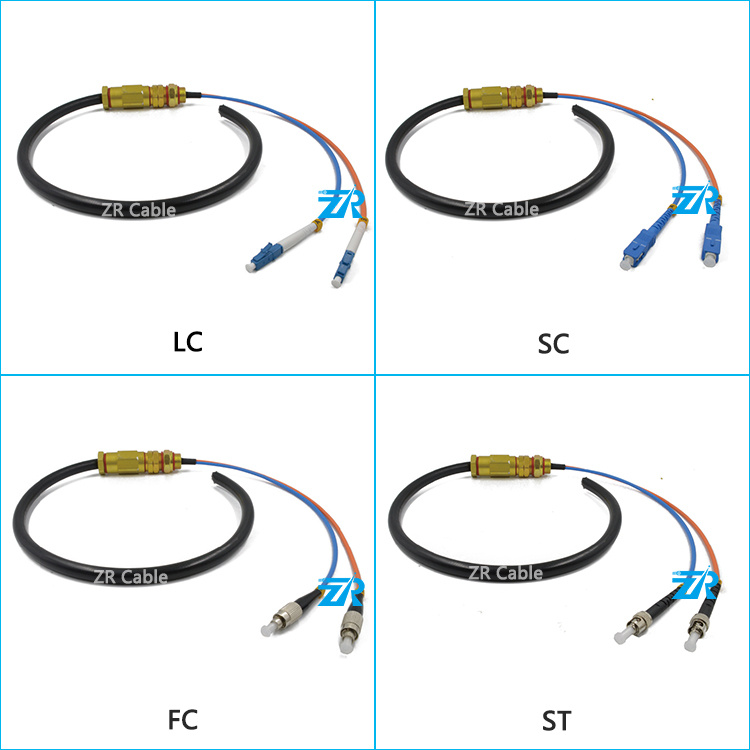

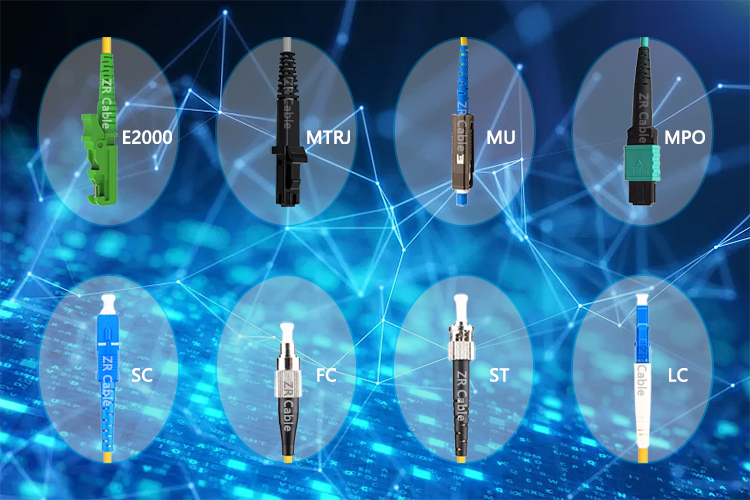

| Style | LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC Duplex MTRJ/Female, MTRJ/Male |
| Fiber Type | 9/125 SMF-28 or equivalent (Singlemade) OS1 50/125, 62.5/125 (Multimode) OM2&OM1 50/125, 10G (Multimode) OM3 |
| Cable Type | Simplex, Duplex (Zipcord) Φ3.0mm, Φ4.0mm,Φ5.0mm, Φ6.0mm,Φ7.0mm PVC or LSZH |

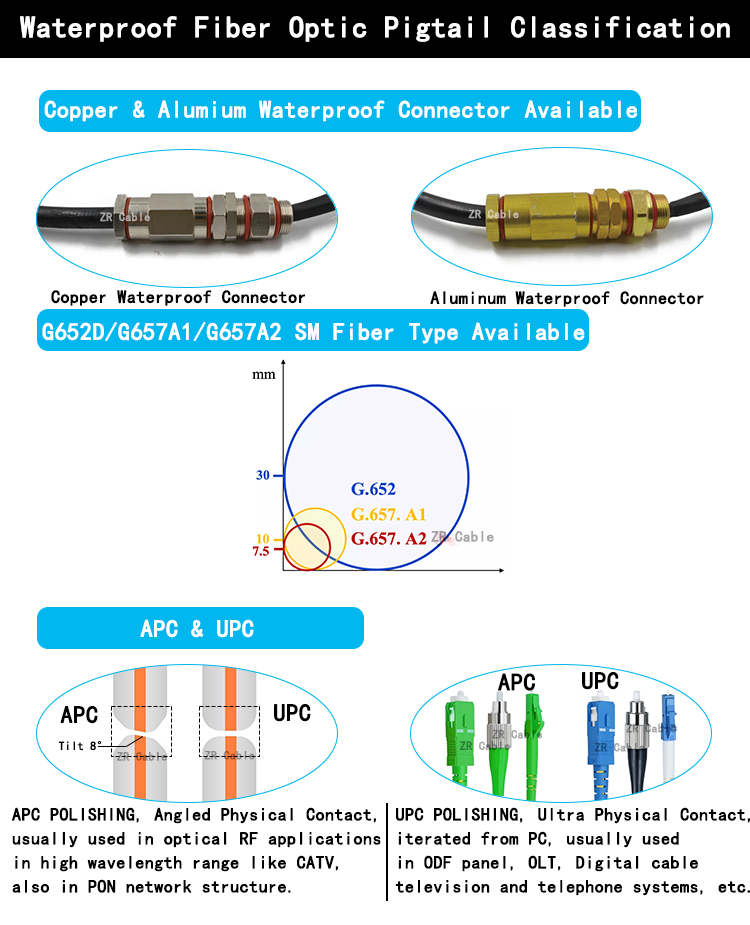

| Polishing Manner | UPC,SPC,APC (8°& 6°) |
| Return Loss (For Singlemode) |
UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750 |
| Insertion Loss | ≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750 |
| Operating temperature | -40℃ to 85℃ |
| Repeatability | ±0.1dB |
| Geometry Requirement (For Singlemode) |
Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
| Fiber Count |
Cable Diameter
(mm)
|
Tensile Strength
(N)
|
Crush Resistance
(N/100mm)
|
Bending Radius
(mm)
|
Cable Weight
(kg/km)
|
| 1 | 2.85 | 200 | 3000 | 25 | 18 |
|
2
(zipcord duplex, 2 fibers in 2 tubes)
|
5.7 | 200 | 3000 | 25 | 38 |
| 2 (duplex, 2 fibers in 1 tube) |
3.2 | 200 | 3000 | 25 | 20 |
| 4 | 6.4 | 800 | 3000 | 65 | 70 |
| 6 | 6.4 | 800 | 3000 | 65 | 75 |
| 8 | 7.4 | 800 | 3000 | 75 | 80 |
| 12 | 7.4 | 800 | 3000 | 75 | 85 |
Company Profile
Welcome to our company
Hunan ZR Communication Equipment Co., Ltd. is a fiber optic communication manufacturer integrating R&D.The main products are indoor distribution cable, outdoor cable, ADSS, OPGW, FTTH cable, fig8 cable, fiber patch cord and other fiber optical accessories.
Our company with 16 years of production experience and 45 optical cable production lines, we can design and produce all kinds of optical cable structures for customers. Having a team of 30+ technical engineers who can provide customers with one-stop solutions for optical links. And we have passed IS09001, ISO14001, OHSAS18001 certification with strict quality control for each delivery. Many internationally renowned optical communication companies have chosen ZR as their OEM supplier. looking forward to the cooperation with you in the future.
Why Choose Us
FAQ
Q1:How can i get your catalogue and price list?
A1:Please let us know your email or contactus from website directly for our catalogue and price list.
Q2:What if there is quality problem when we get the goods?
A2:If there is quanlity problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Further-more we will also take action to improve
the quality in future.
the quality in future.
Q3:What is your terms of payment?
A3:T/T 30% as deposit, and 70% before delivery.We"ll show you the photos of the products and packages before you pay the balance.
Q4:May I buy samples from you?
A4:Yes! You are welcome to place sample order to test our superior quality and services.
Q5:How about your delivery time?
A5:Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6:Can you provide us more other products to us to help us to save more shipping costs?
A6:Yes. There’re kinds of Indoor Cables, Outdoor Cables, Coaxial Cables, Telephone Cables, Fiber Optic Cables and Accessories will be the main products line of Factory. The OEM bulk order will be accept as well.
