G657a1 G657a2 G652d Bare Fiber FPV UAV Fiber Optic Cable SM MM 50KM Bare Fiber 0.25mm G657a1 G657a2 Fpv Uav Fiber Optic Cable

Click to open expanded view

Bare Fiber Optic Cable 0.25mm SM MM ITU-T G657a1 G657a2 G652d Bare Fiber 50KM G657a1 G657a2 FPV Bare Optic Fiber

Name: G657a1 G657a2 G652d Bare Fiber FPV UAV Fiber Optic Cable SM MM 50KM Bare Fiber 0.25mm G657a1 G657a2 Fpv Uav Fiber Optic Cable
Brand: ZR
Availability: InStock

#123113218

Get Best Price

Specifications

Description

Videos

Resources

Application

indoor/outdoor

Fiber

undefined

Description

Product descriptions from the supplier

zr-product-image

Products Description

Application:

* Suitable for all kinds of cable structures

* Excellent performance in O-E-S-C-L band

* FTTx high-speed optical routing

* Optical cables with small bending radius requirements

* Small size optical cable and fiber optic devices

Features:

* Excellent bending resistance in the range of 7.5~15 mm bending radius

* Fully compatible with G.652 single-mode fiber

* Low attenuation, to meet the requirements of O-E-S-C-L working band

* Low polarization mode dispersion (PMD) to meet the needs of high speed and long distance transmission

* Used in a variety of optical cables including ribbon optical cables, with very low bending additional loss

* Precise geometric parameters ensure low welding loss and high welding efficiency

* High fatigue resistance parameters to ensure service life under small bending radius

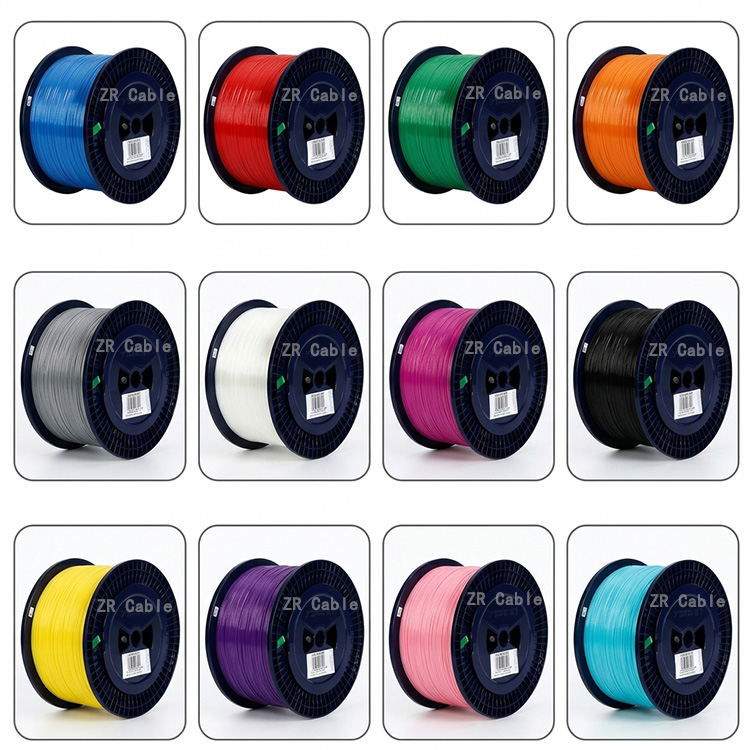

Fiber Color

No.	1	2	3	4	5	6
Color	Blue	Orange	Green	Brown	Gray	White
No.	7	8	9	10	11	12
Color	Red	Black	Yellow	Violet	Pink	Aqua

Item		Unit	Specification （G. 657A1）	Specification （G. 657A2）	Specification（G.652D）
Mode field diameter	1310nm	um	8.6-9.5 ± 0.4	8.6-9.5 ± 0.4	9.2 ± 0.4
Mode field diameter	1550nm	um	/	/	10.4 ± 0.8
Cladding diameter		um	125.0 ± 0.7	125.0 ± 0.7	125.0 ± 1
Cladding non-circularity		%	≤1.0	≤1.0	≤1.0
Core/cladding concentricity error		um	≤0.5	≤0.5	≤0.5
Coating diameter		um	245 ± 5	245 ± 5	242 ± 7
Coating/cladding concentricity error		um	≤12	≤12	≤12
Cable cut-off wavelength		nm	≤1260	≤1260	≤1260
Attenuation Coefficient	1310nm	dB/km	≤0.36	≤0.36	≤0.36
Attenuation Coefficient	1550nm	dB/km	≤0.22	≤0.22	≤0.22
Macro-bend loss (1 turn, 10mm radius)	1550nm	dB/km	≤0.75	/	/
Macro-bend loss (1 turn, 10mm radius)	1625nm	dB/km	≤1.5	/	/
Macro-bend loss (1 turn,7.5mm radius)	1550nm	dB/km	/	≤0.5	/
Macro-bend loss (1 turn,7.5mm radius)	1625nm	dB/km	/	≤1.0	/
Proof stress level		kpsi	≥100	≥100	≥100

Item		Unit	Specification（OM1）	Specification（OM2）	Specification（OM3）	Specification（OM4）
Core diameter		um	62.5±2.5	50±2.5	50±2.5	50±2.5
Cladding diameter		um	125.0 ± 1.0	125.0 ± 1.0	125.0 ± 1.0	125.0 ± 1.0
Cladding non-circularity		%	≤1.0	≤1.0	≤1.0	≤1.0
Core/cladding concentricity error		um	≤1.5	≤1.5	≤1.5	≤1.5
Coating diameter		um	245 ± 10	245 ± 10	245 ± 10	245 ± 10
Coating/cladding concentricity error		um	≤12	≤12	≤12	≤12
Bandwidt	850nm	MHz·km	≥ 160	≥ 500	≥ 1500	≥ 3500
Bandwidt	1300nm	MHz·km	≥ 500	≥ 500	≥ 500	≥ 500
Attenuation Coefficient	850nm	dB/km	≤3.5	≤3.5	≤3.5	≤3.5
Attenuation Coefficient	1300nm	dB/km	≤1.5	≤1.5	≤1.5	≤1.5
Proof stress level		kpsi	≥100	≥100	≥100	≥100

zr-product-image

Company Profile

zr-product-image

Welcome to our company

Hunan ZR Communication Equipment Co., Ltd. is a fiber optic communication manufacturer integrating R&D.The main products are indoor distribution cable, outdoor cable, ADSS, OPGW, FTTH cable, fig8 cable, fiber patch cord and other fiber optical accessories.

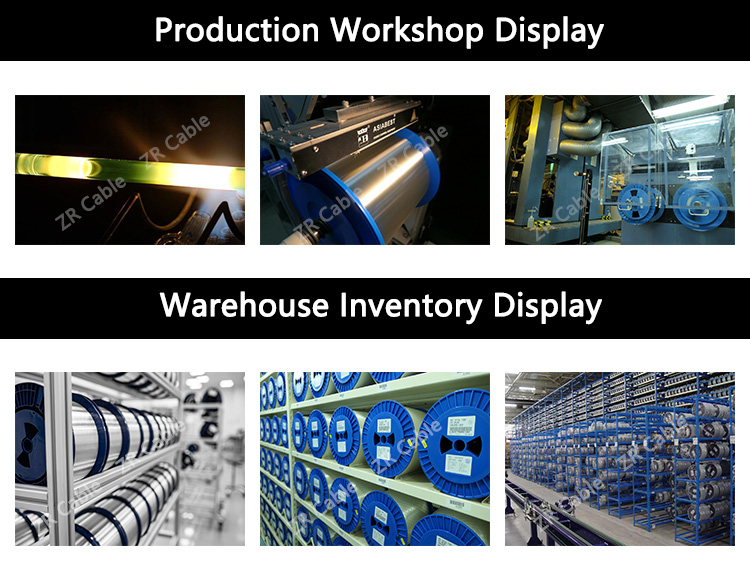

Our company with 16 years of production experience and 45 optical cable production lines, we can design and produce all kinds of optical cable structures for customers. Having a team of 30+ technical engineers who can provide customers with one-stop solutions for optical links. And we have passed IS09001, ISO14001, OHSAS18001 certification with strict quality control for each delivery. Many internationally renowned optical communication companies have chosen ZR as their OEM supplier. looking forward to the cooperation with you in the future.

Why Choose Us

zr-product-image

FAQ

Q1:How can i get your catalogue and price list?

A1:Please let us know your email or contactus from website directly for our catalogue and price list.

Q2:What if there is quality problem when we get the goods?

A2:If there is quanlity problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Further-more we will also take action to improve
the quality in future.

Q3:What is your terms of payment?

A3:T/T 30% as deposit, and 70% before delivery.We"ll show you the photos of the products and packages before you pay the balance.

Q4:May I buy samples from you?

A4:Yes! You are welcome to place sample order to test our superior quality and services.

Q5:How about your delivery time?

A5:Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q6:Can you provide us more other products to us to help us to save more shipping costs?

A6:Yes. There’re kinds of Indoor Cables, Outdoor Cables, Coaxial Cables, Telephone Cables, Fiber Optic Cables and Accessories will be the main products line of Factory. The OEM bulk order will be accept as well.
