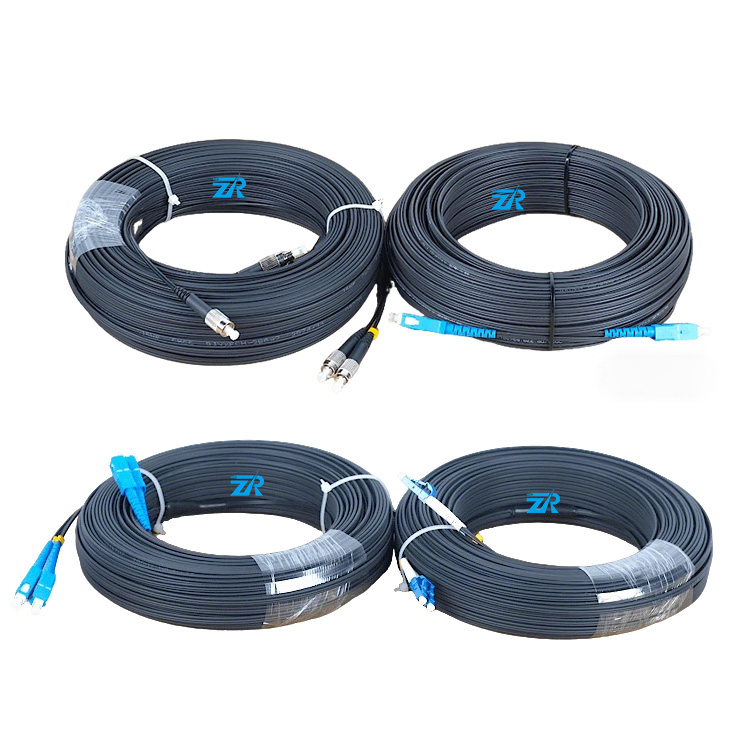

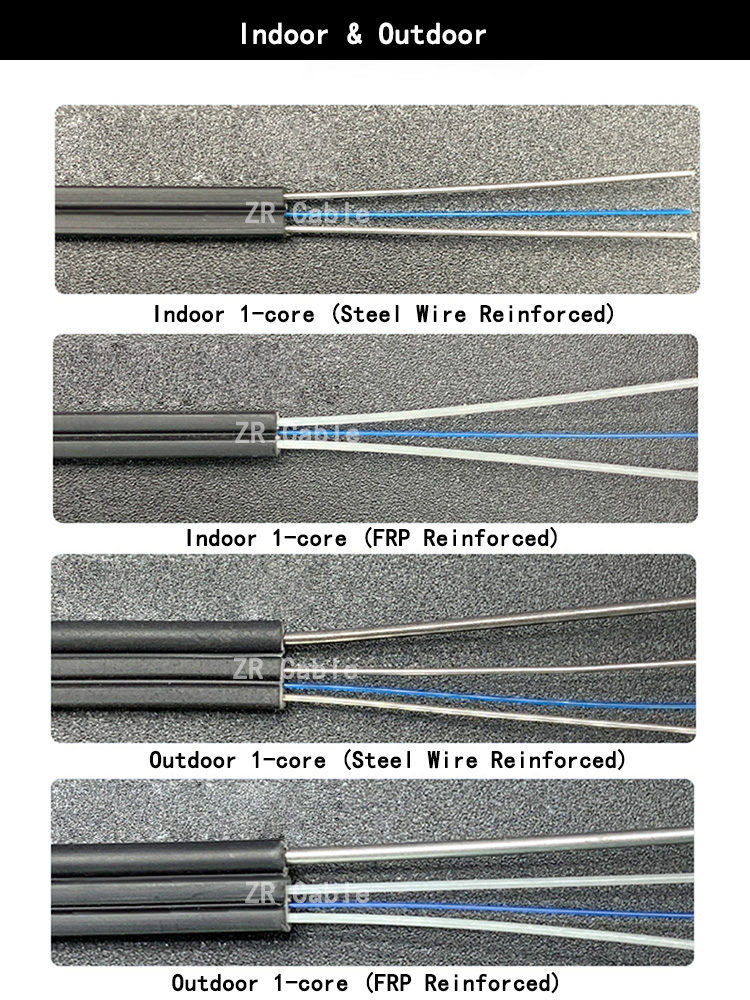

FTTH Drop patch cord is specialize for FTTH project. Also named pre-termi-nated bow drop cable. In the center of the cable is the optical communi-cation unit, with the two parallel non-metical enhanced FRP/Metal/KFRP asthe strength member, and surrounded with the LSZH/PVC jacket.To ensurestrong tension and compressive resistance.
| Parameters | SC/LC | ||
| UPC | APC | ||
| Mode | SM | MM | SM |
| Insertion loss (dB) | ≤0.3 | ≤0.3 | ≤0.3 |
| Return loss (dB) | ≥50 | ≥50 | ≥60 |
| Repeatability (dB) | ≤0.2 | ||
| Interchangeability(dB) | ≤0.2 | ||
| Service life | >1000times | ||
| Tensile strength | >10kg | ||
| Operating Temp(°C) | -30°C ~+75°C | ||
| Storage Temp(°C) | -40°C to +85°C | ||
| Technical Parameters |
|||||||||
|
Fiber count |
Out sheath Diameter | Weight | Minimum allowable Tensile Strength (N) |
Minimum allowable Crush Load (N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature
|
|||
| (MM) | (KG) | short term | long term | short term | long term | short term | long term | (℃) | |
| 1 | 2.0*5.0 | 8 | 600 | 200 | 1000 | 300 | 20D | 10D | 40 |
